FARM CLASSICS: John Deere 7710 a true hall-of-fame performer

July 27th, 2023 10:05 PM

By Southern Star Team

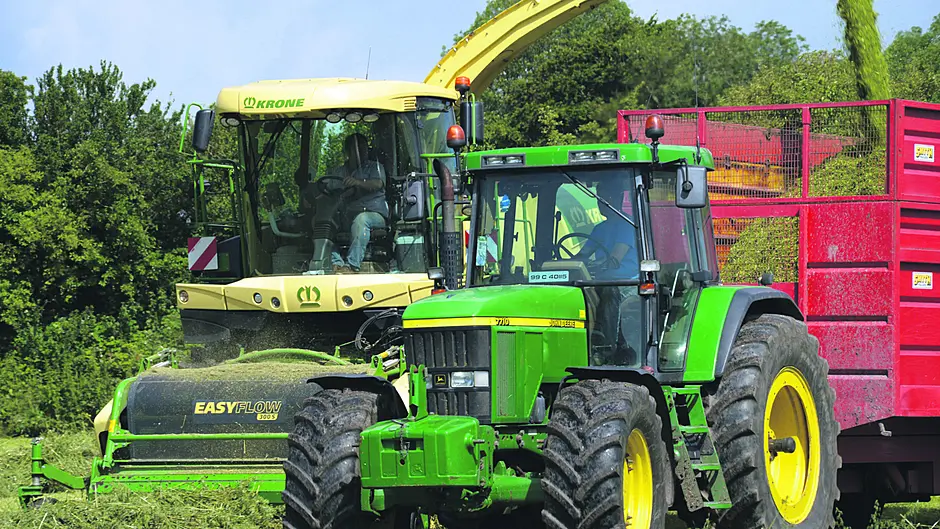

The John Deere 7710. With 175hp on tap, many 7710s have been pushed well beyond the 200hp mark.

Share this article

VITAL STATISTICS

Tractor

John Deere 7710

Horsepower

175hp

Engine

PowerTech 8.1l

Years of manufacture

1996-2003

AS tractors go, the John Deere 7010 series has its place in the tractor hall of fame firmly secured, being widely regarded as the one of the best, if not the best John Deere series ever designed, while many owners, drivers and enthusiasts would argue it is one of the greatest tractors of all time with its diehard engine, simple yet reliable gearbox, compact frame with excellent turning circle, excellent power to weight ratio, comfortable cab.

Manufactured in Waterloo, Iowa from late 1996-2003,

the 7010 series incorporated John Deere’s established full frame chassis design and re- placed the 7000 series and is instantly recognisable with its cast weighted rear wheels, adjustable rear bar axle and commanding stature. Three models were available – 7610, 7710, and 7810 – the latter pair available on the European market.

There is no denying that the 7810 is the boss of the series, the most powerful, the most desirable, the range topper, with the smaller 7710 playing somewhat of a second fiddle. It is an unfortunate tale for the 7710 as it is almost identical to its larger brother albeit for the fuelling configuration which puts its max power at 175hp. The engine, transmission options, lift capacity of 8.1 tons, oil flow of 100l/min, width, height, and length are identical to that of its larger sibling

For the 7710 and 7810, the outgoing 7000 series 7.6l engine was replaced with John Deere’s legendary 8.1 litre PowerTech engine which provides the grunt and unmistakeable soundtrack for the 7710.

With 175hp on tap, many 7710s have been pushed well beyond the 200hp mark. Lat- er 2003 models are fitted a common rail fuelled version of the same engine to meet emissions standards.

Originally, two transmissions were available: the tried and tested PowrQuad with optional left-hand, clutchless shuttle as well as the less common PowerShift. Transmission options were further upgraded with Au- toQuad II, with the four rang- es moved to the main gear lever operated via buttons: manual or automatic-complete with speed matching functions.

AutoPowr brought CVT to the series and both of these new transmissions had an electronically controlled powerboost function based on engine load and were available as 40kph or 50kph options.

While not the largest, the TechCentre cab has very good steering column and excel- lent levels of seat adjustment to achieve the optimal driving position. This is a func- tional levers, switches and dials cab with high driving station and logical control layout make for a pleasant working day with TLS front suspension adding extra comfort. Send us your 7710!

• Contact Peter at psob1987@ gmail.com or see Instagram @flashphotoscork
